Adjusting the LCD backlight intensity and viewing angle

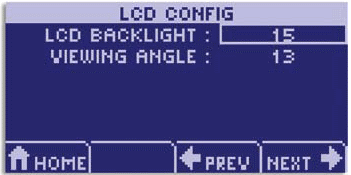

The LCD CONFIG page allows you to adjust the LCD backlight intensity and the viewing angle.

The perceived contrast is dependent on the viewing position. For example, a setting that provides high contrast when viewing the display from the front, may provide an inverted view when looking at the display from above. Adjust for the best view at the common working angle.

To adjust the LCD backlight intensity and viewing angle

1. From the main menu, select CONFIG to display the first configuration page, LAN CONFIG, then select NEXT repeatedly until the LCD CONFIG page is displayed.
2. Use the wheel and push button to select LCD BACKLIGHT.



3. Use the wheel’s rotary control to select the desired value.

   The range is 0 (least intense) to 15 (most intense).

4. Use the wheel and push button to select VIEWING ANGLE.
5. Use the wheel’s rotary control to select the desired value.

   The range is 10 to 40 with the 20 position providing the highest contrast and color when viewing the display head on or directly in front.

6. When you are satisfied with the display settings, select NEXT to advance or HOME to complete the adjustment.
