Adding the iPad device

1. In the device tree, expand the Hardware folder.
2. Expand the Mobile Display folder, then drag an iPad Device node over to the design page.

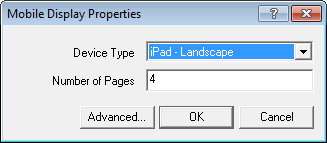

   The Mobile Display Properties dialog box is displayed.



   The Device Type is selected automatically.

3. In the Number of Pages box, type the number of individual design pages to be displayed on the device when it is created.

   These are the pages that will be visible on the device itself when the project is running.

   Notes:

   • If you change the number of pages after the device has been created, all the controls you have added to the pages will be deleted. To avoid this problem, you can use a GUI block with the same dimensions as the device, finish the design in the GUI block, then copy the controls over to the device.
   • We recommend that you place nTouch 60 devices, Kiosk Layout blocks, Kiosk2Go Layout blocks and Mobile Display blocks on a separate page to the other devices in the project, and do not export the page.

4. If you want to change the role to which this device belongs:
   1. Click Advanced.

      The Advanced properties dialog box is displayed.



   2. Click the button to change it to the button, and then select a role name in the list.
   3. Click OK.
5. Click OK.
