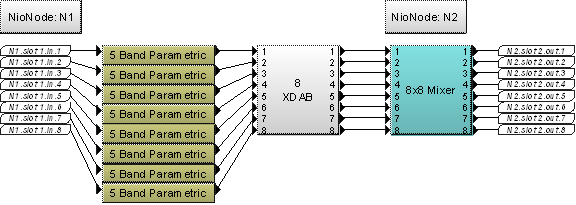

In this example, the compiler can automatically determine which NioNodes will host the devices – it is inferred by the arrangement in the design.
The input flyoffs from NioNode N1 are wired to the parametric equalizers, which are in turn wired to the XDAB device inputs. The compiler will therefore place the parametric equalizers into the N1 role. The output flyoffs from NioNode N2 are wired to the 8x8 mixer, so the mixer will be placed into the N2 role for the second NioNode.
|
