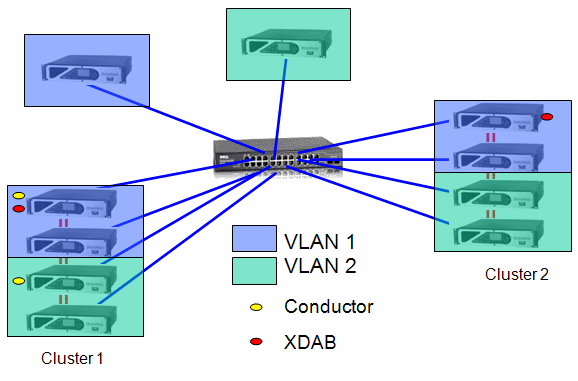

Scenario 8 - Network with VLAN and two XDAB clusters

This scenario is a variant of the previous scenario, but contains more than one XDAB cluster.

• The same rules apply as in the previous scenario.
• Again, the Conductor for VLAN 2 must be within the XDAB cluster.
• It does not matter which cluster the Conductors are in. In this case, the Conductors are show in cluster 1.
• In this example, it does not matter which device in cluster 2 is the XDAB master. The XDAB master will receive its audio clock from a CobraNet Conductor in either VLAN 2 or VLAN 1, both of which are in sync with each other.
• The clock received by any device in cluster 2 via CobraNet will be the same because the Conductors for both VLANs are in cluster 1 and are synched to the same clock.
