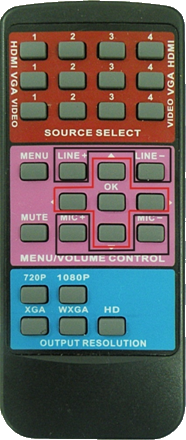

Infrared remote control

Video source select:

  • HDMI inputs 1,2,3,4.
  • VGA inputs 1,2,3,4.
  • Component video inputs: 1. Composite video, 2. Component video (YPbPr), 3. S-Video, 4. Composite video.

Menu and volume control area. Mute for line and mic audio inputs.

Line volume control. This can be used when not in MENU mode.

Direction buttons and OK button. These are only available in MENU mode.

Mic volume control. This can be used when not in MENU mode.

Output resolution select:

  • 720P (1280x720)
  • 1080P (1920x1080)
  • XGA (1024x768)
  • WXGA (1280x800)
  • HD (1360x768)
