VSC-101tn front and rear

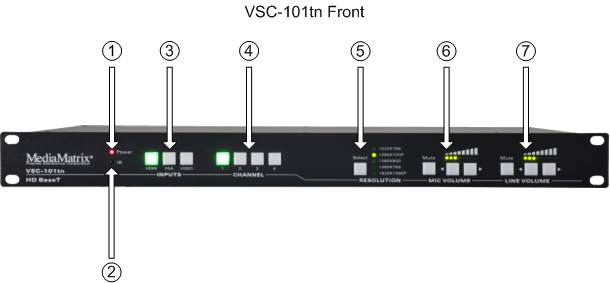

  1. POWER: Lit (red) when the external power supply is connected properly.
  2. IR (infrared) internal receiver. For use with the remote control.
  3. Video input source selection buttons: HDMI, VGA or analog video.
  4. Video source channel selection buttons.
  5. Output resolution selection button. Supported resolutions: 1024×768, 1280x720p, 1280×800, 1360×768, 1920×1080p.
  6. Non-switched audio input volume control buttons (both mic and line inputs).

    Mute for mic and stereo line inputs, arrow buttons for volume up and down.

  7. Line volume control buttons for controlling the levels of switched video inputs.

    Mute for switched video volume, arrow buttons for volume up and down.

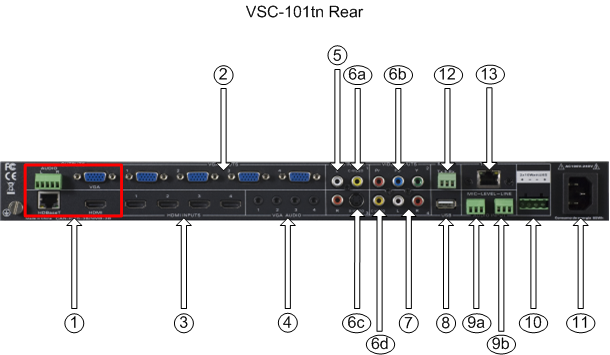

  1. Output section.

    5-pin Euro-connector for balanced stereo audio output, one VGA output, one HDMI output with embedded audio. One HDBaseT port for HDMI (works with the VCAT-HDR).

  2. Four VGA input connectors.
  3. Four HDMI input connectors.
  4. Four 3.5mm stereo audio connectors for VGA audio inputs.
  5. RCA stereo inputs. Shared audio inputs for video inputs #1 and #3.
  6. Analog video inputs.
    1. Input #1: composite video.
    2. Input #2: component video (Y/Pb/Pr)
    3. Input #3: S-Video
    4. Input #4: composite video.
  7. RCA stereo inputs. Shared audio inputs for video inputs #2 & #4.
  8. USB port for firmware updates.
  9. Non-Switched audio inputs.
    1. Balanced mic level input.
    2. Line level stereo input.
  10. Amplifier with 2x10W@8O output.
  11. Power connector.
  12. RS232 port for serial control.
  13. Ethernet port for telnet control.

    Control string commands received via control ports are passed on through the HDBaseT output for control of far end video devices.
