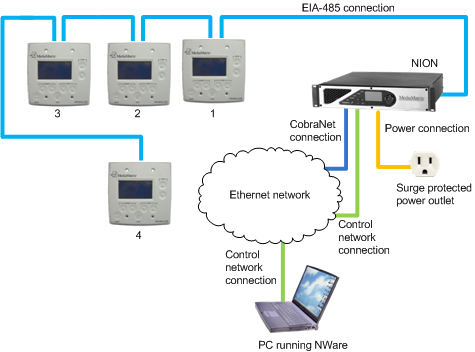

In this configuration, an EIA-485 connection is made between the first xControl LCD and a NION. The remaining xControl LCDs are daisy-chained to the first unit. The NION is connected to a power outlet, as well as the control and CobraNet networks.
The switch at the rear of the xControl LCDs numbered 1-3 is set to OUT. The switch at the rear of xControl LCD number 4 is set to IN.
|
