Topic: Scheduler resets after trigger

Greetings one and all,

So, being brand spanking new to the world of the Peavey Media Matrix system, i am a little unsure over a few things.

I have had a little read through the forum and help documents but seem unable to drum up an aswer.

My basic issue is that, when i run the schedulers they take their intially programmed time and trigger when required but after it has taken the command, it then clears the scheduler and the times no longer remain and therefore do not work again unless the times are manually inputted which obviously defeats the whole purpose of an automatic trigger.

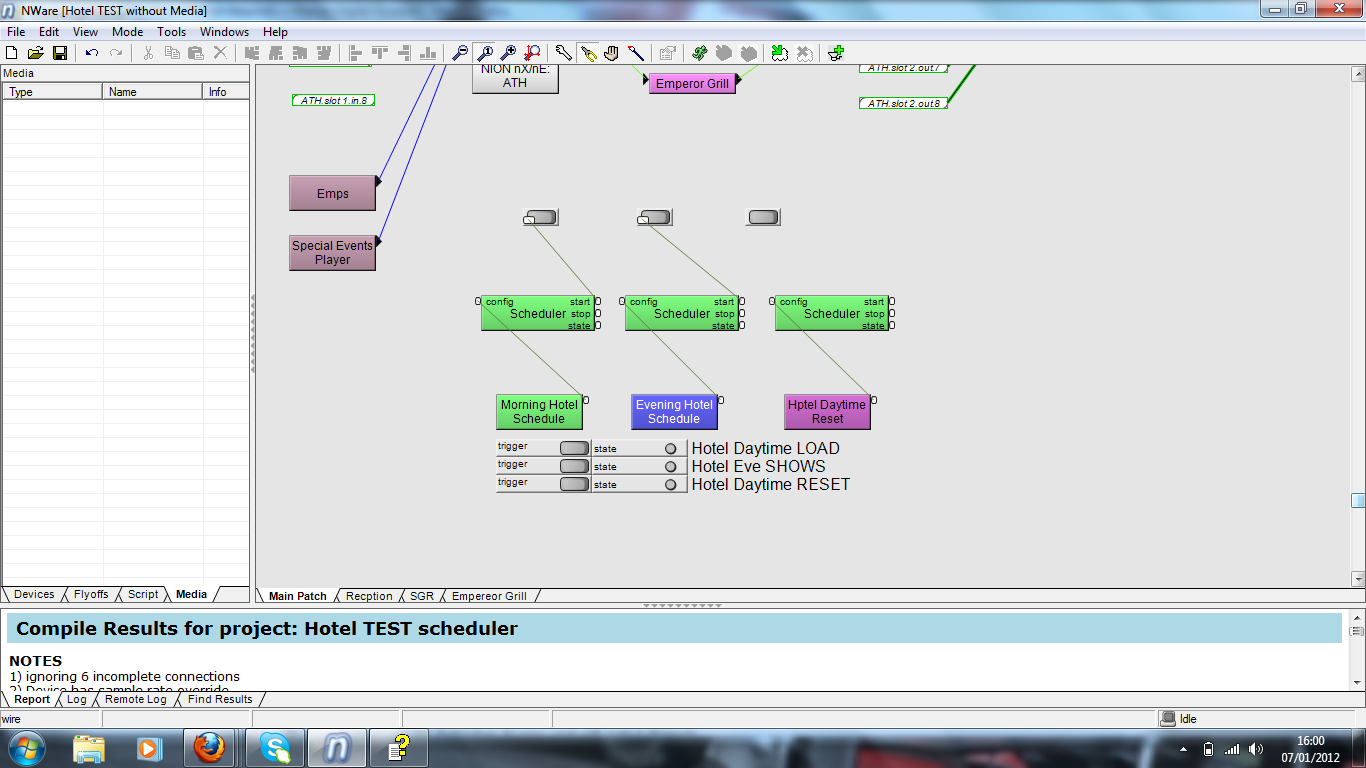

I have included a screen shot if anyone can work out from my very basic programming what i may have done incorrectly.

Thanks in advance

Matt S

Post's attachments

Attachment icon ATH Scheduler.png 211.71 kb, 463 downloads since 2012-01-07

2 Reply by JoshM

  • JoshM
  • JoshM
  • Recording Engineer at Burnt Orange Studio
  • Offline
  • From: Meridian, MS
  • Registered: 2007-08-13
  • Posts: 1,498

Re: Scheduler resets after trigger

Hi Matt,

If you are using Global Presets or Subpresets, it is distinctly possible that when you are recalling the preset, you are also recalling different settings for your Schedule Generator.

Unless there is a huge number of settings, or you really do want to recall ALL of the settings in the box, I'm a huge fan of using Snapshots. What settings do you want the preset to recall?

Thanks!
Josh

Josh Millward
Burnt Orange Studios

JoshM's Website

3 Reply by Thenoiseboy

  • Thenoiseboy
  • Member
  • Offline
  • From: Staffordshire UK
  • Registered: 2012-01-07
  • Posts: 6

Re: Scheduler resets after trigger

JoshM,

after looking at it, the whole thing does use a Global preset recall to control the whole system but i have tried wiring up the schedulers to snap shot recalls and these will save the info when i have inputted it into the scheduler however, the same issue still exists where after it has taken the command to recall the global trigger, it resets back to 00:00.

Thanks

Matt

4 Reply by Fergy

  • Fergy
  • MM Tech Support
  • Offline
  • From: The Home Office--Meridian
  • Registered: 2007-08-15
  • Posts: 334

Re: Scheduler resets after trigger

Matt,

Take a look at this project to help you understand Presets and Snapshots.

Fergy

Post's attachments

Attachment icon Presets explanation 2.npa 223.46 kb, 638 downloads since 2012-01-13
